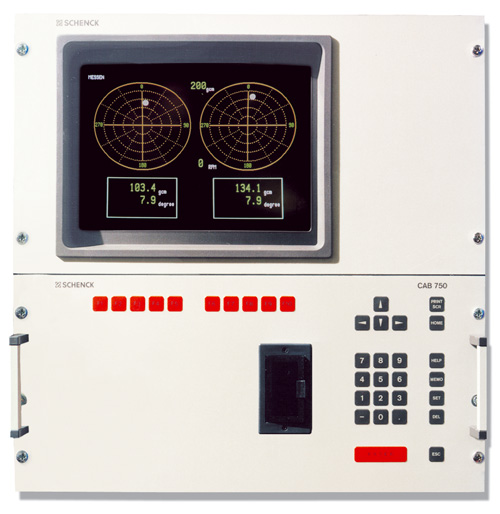

CAB 750 is the instrument of choice for
series production. Through multi-processor technology and effective
multi-tasking it’s more than just a balance measuring unit: measurement
assessment, correction calculation and control, fault diagnostics, and data
transfer run simultaneously. The instrument is a multi-functional measurement
and control system. It guarantees the shortest system times, converts unbalance
into effective correction and exchanges signals with peripheral equipment.
Digital technology and efficient operating concept with software- supported
setup procedures minimize non-productive time for the balancing machine and
measuring system. The data memory for known type data and important machine and
correction parameters allow setup by push-button or automatically through an
external command.
Diagnostic tools isolate disturbances and the expense of setting up after an
exchange of components is minimal.
With CAB 750 you are also able to switch between types of correction after the
measurement - precisely down to the last digit (whether polar or in components,

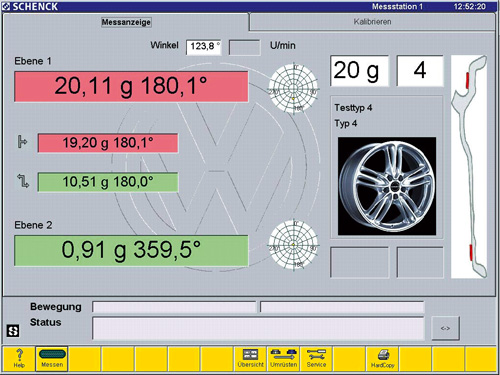

in metric or imperial units, as digital values, vector displays or color graphics).
The optimal correction calculation is carried out automatically and without
error whether through drilling, milling, welding, grinding, classification, in
components or polar, in one or more planes, in multiple processing steps, in fixed
or iterative systems. Up to 12 digital axes are controlled for positioning the
work-piece and the tools, in operation and during the setup process.
Needless to say, this powerful instrument also provides for statistical process
control.
